South Coast Radio

Part one of a feature on one of Ireland's independant free stations

South Coast Radio Car Sticker

All of which broadcast until outlawed through the 1980's

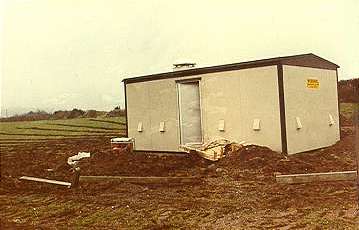

Transmitter hut arrives on site outside Cork

Antenna stage 1

Antenna first stage standing with perimeter fence going up

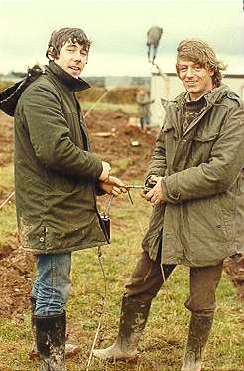

Antenna Riggers

Antenna riggers with Paddy Pendergast right, fitting insulators to the first guy wire, Paddy had erected the Sunshine and Nova masts

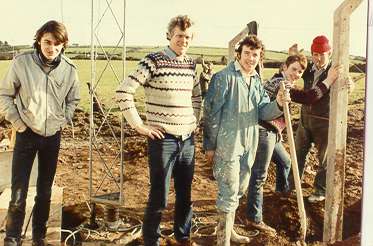

Ground site preparation

Ground site preparation continues

SCR headed paper

Paddy Pendergast

Paddy sorts out more guys and insulators in transmitter hut

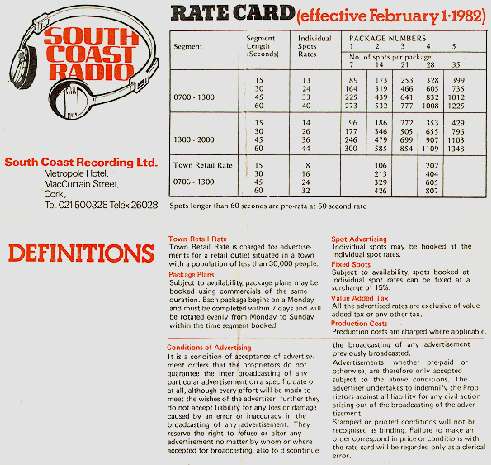

SCR Rate Card

Keith York

Keith York


South Coast Radio Jingles

SCR Rate Card detail

SCR RCA Beta 10kw TX

The RCA Beta 10 kw MW transmitter came from Salt Saint Marie on the Canada side of the USA border

The lakeside unit was on 1034 khz above R/F driver valve the aerial loading coil with right the 2 boxed crystal oscillators with 4 rectifiers below

SCR Car Sticker 2

Guy wires on antenna

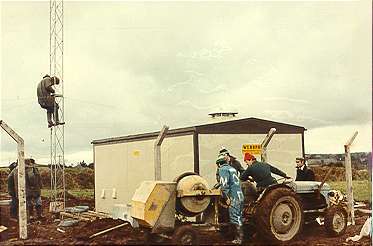

Guying the first stage with 1950's Furguson tractor powering the concrete mixer

TX site work continues

Rear of the transmitter cabinet, riggers with more guys and insulators

SCR Advertising terms

TX block diagram

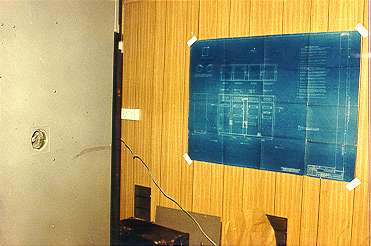

Transmitter block and circuit diagrams

TX Modulator Rigger on stage 1 of antenna

Transmitter modulator stages left as rigger perches on the top of the first antenna mast stage

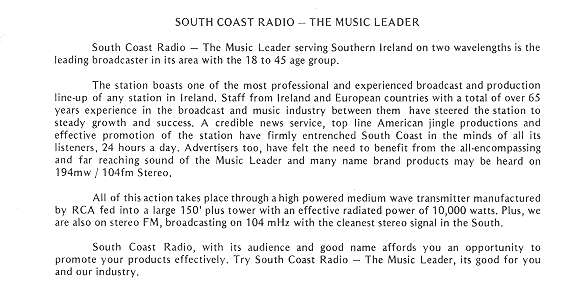

SCR promise

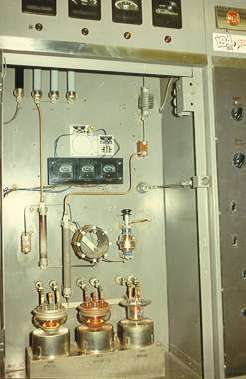

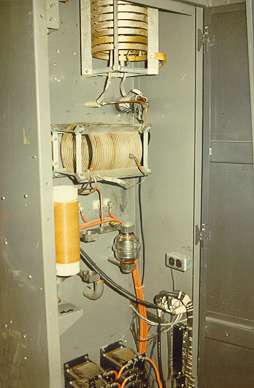

TX power & tyratrons TX RF & driver stages

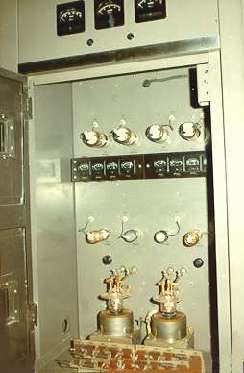

Transmitter power control, tyratrons left with R/F driver and output stages right

Terry Vacani

Transmitter engineer Terry Vacani with the original Beta transmitter crystal

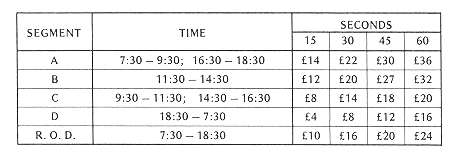

SRR segment spots

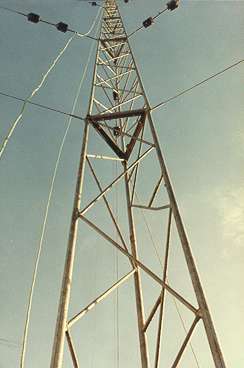

Antenna Antenna guys

More guys being attached to the aerial mast

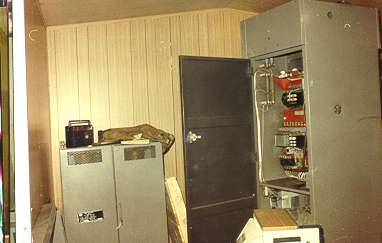

4 phase psu

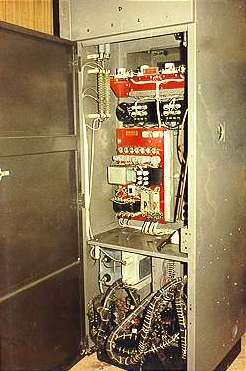

4 phase PSU at rear of transmitter cabinet

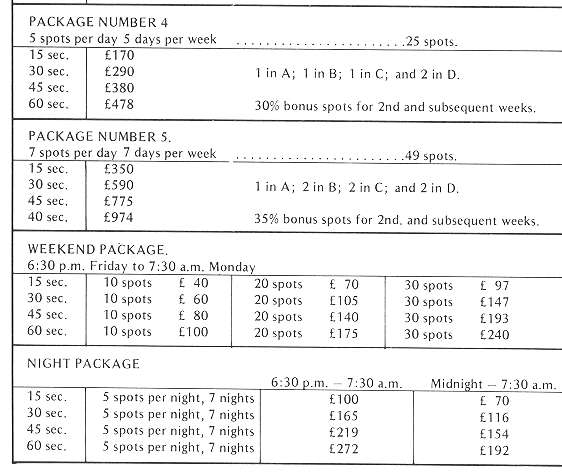

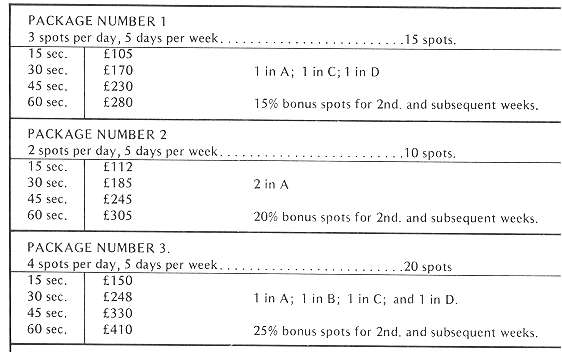

SCR spot rates continued

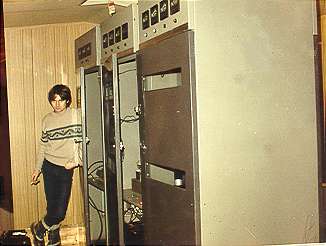

Keith York by TX cabinets

Working on the third of the eight transmitter cabinets

Terry Vacani

SCR spot rates continued

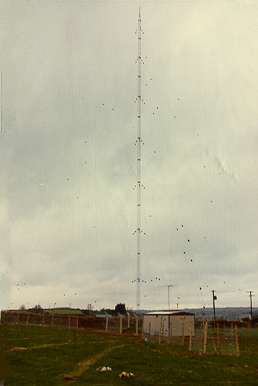

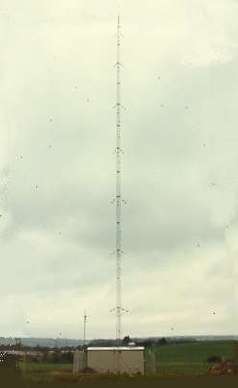

Completed antenna mast

The 147 foot quarter wave antenna mast was supported by 121 copper composite wires spaced at 3 degrees were sunk in six inches of concrete

TX checks TX checks

Transmitter tests

SCR Sticker

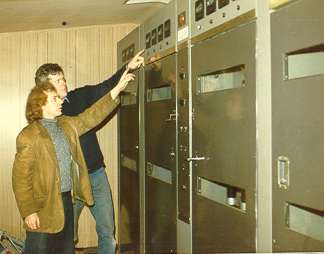

Keith & Terry in TX hut

TX footprint

Fully functional TX Antenna mast with its lights

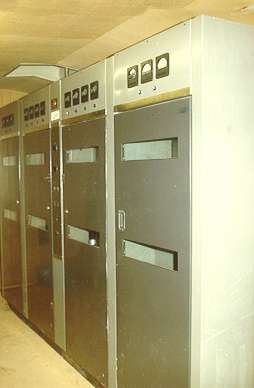

Fully functional transmitter comprising all eight cabinets fitted back to back

The completed mast had a 2 foot white & three 2 foot red radial fluorescent tubes on the top

Transmitter RF made it quite a sight at night

SCR address label

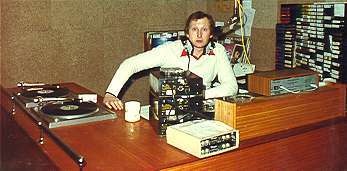

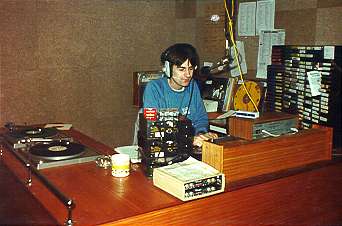

Keith York tries out studio

Studio audio was processed by a Dynamite Compressor

John Kerry Keith York

John Kenny & Keith York hope to clean up in Ireland

SCR launch flyer

SCR launch flyer

Peter Madison

Peter Madison contemplates the tests

SCR Competition flyer

Stevie Dunne

Stevie Dunne surprised to be on air

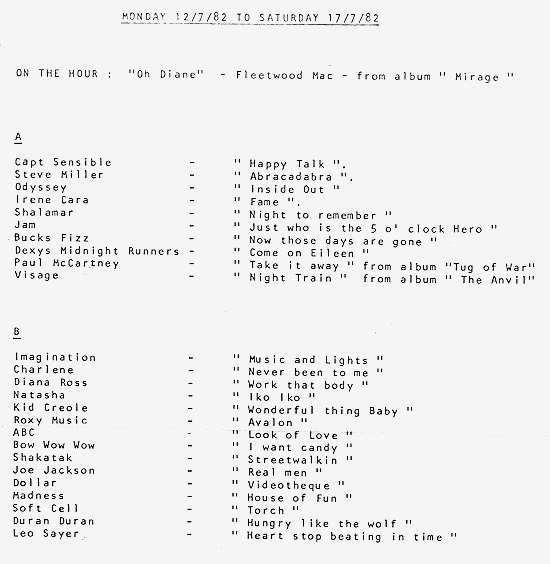

SCR Playlist

South Coast Radio A & B list for 12th - 17th July 1982

Mary Croggan Peter Marrs girlfriend

Secretary Mary Croggan with Peter Marrs girlfriend right

SCR sticker

But as with all Pirates strorm clouds begin to gather over Southern Ireland

Save SCR sticker

The South Coast Radio story continues in Ireland in Part 2
